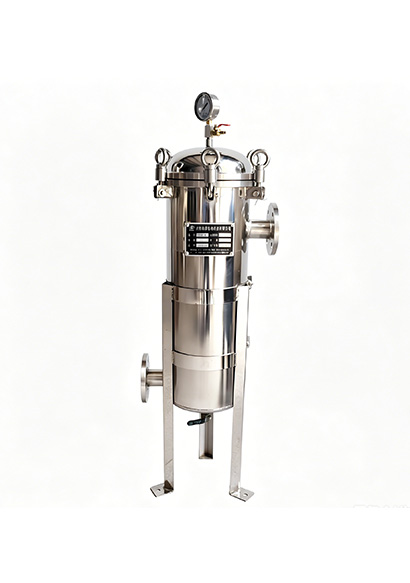

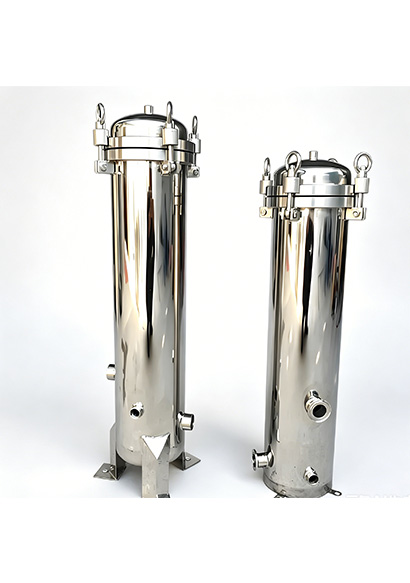

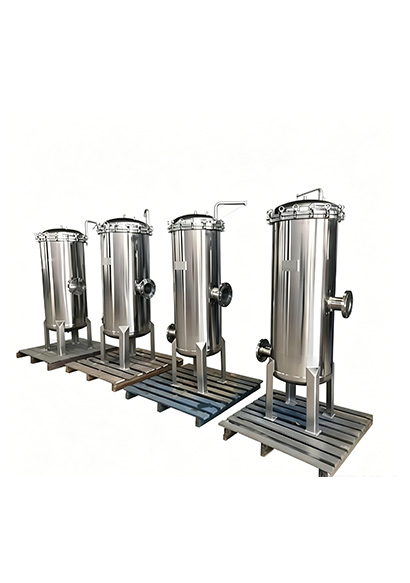

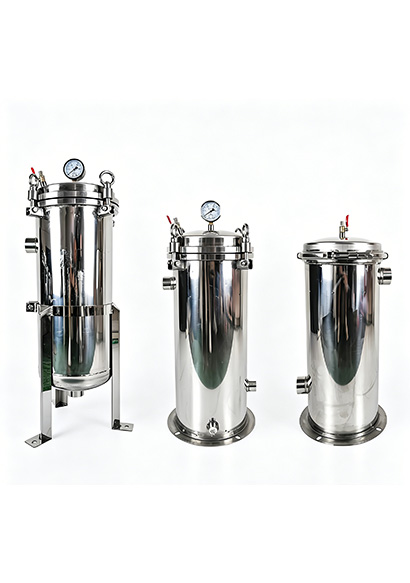

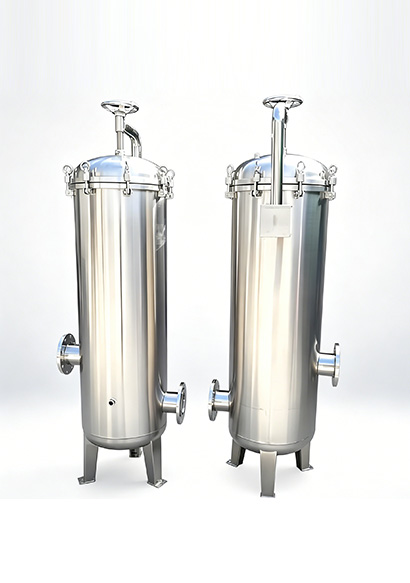

Stainless steel precision filters, also known as cartridge filters or security filters, feature an attractive appearance and simple, rational structure with internal and external polishing. They boast low cost, compact size, large filtration area, fast flow rate, low clogging rate, excellent acid and alkali resistance, and long service life.
The tank body is made of high-quality stainless steel. The filter housing adopts a quick-open design, allowing tool-free and rapid cartridge replacement. Equipped with filter cartridges of various accuracies (including PP cartridges, wound cartridges, pleated cartridges, ceramic cartridges and other types), it can remove fine particles, colloids, metal contaminants, bacteria, residual chlorine and other impurities from water or air.
Email:
xxhuaqing@126.comPhone:
+86 159365252321. High filtration accuracy with uniform pore size of cartridges.
2. Low filtration resistance, large throughput, strong dirt holding capacity and long service life.
3. High-purity cartridge material, no contamination to filtered media.
4. Resistant to acids, alkalis and other chemical solvents.
5. High mechanical strength and temperature resistance; cartridges are not easy to deform.
6. Cost-effective with low operating cost. Easy to clean, and cartridges are replaceable.
Widely used for water clarification, concentration & purification and air purification in food & beverage, medical & chemical, pure/ultra-pure water systems, bottled water and mineral water production lines, electronics and other industries.
1. Thoroughly clean the filter housing.
2. Connect the inlet and outlet of the housing to the pipeline. Follow the flow direction strictly to ensure water enters from the outside of cartridges and exits from the inside.
3. Unpack the top end of the cartridge, and check if the O-ring is intact and properly positioned.
4. Moisten the O-ring and cartridge socket with a suitable wetting agent (e.g. clean water).
5. Hold the cartridge near the O-ring end, and insert it vertically and fully into the socket.
6. After installing all cartridges, remove all packaging bags, fasten the pressure plate and install the metal cover.
7. Open the air vent on the top of the housing. Slightly open the inlet valve to fill the housing with liquid. Close the air vent once liquid overflows.
8. Slowly open the downstream outlet valve until fully open.
9. Slowly open the inlet valve until fully open. The initial pressure drop across the filter shall be 0.02 MPa under rated flow.
10. Replace the cartridges in time when the pressure drop exceeds 0.3 MPa or the flow rate drops obviously.
Flow Rate: 0.2 ~ 130 t/h (full series)
Filtration Accuracy: 0.1, 0.2, 0.45, 1.0, 3.0 ~ 60 μm
Cartridge Material: Polypropylene (PP) membrane, Polytetrafluoroethylene (PTFE) membrane, Cellulose Acetate (CN-CA) membrane; available in hydrophobic type (for gas) and hydrophilic type (for liquid)
Cartridge Length: 10", 20", 30", 40"
Cartridge Connection: Snap-in type for single-cartridge filters; Plug-in & flat compression type for multi-cartridge filters
Surface Finish: Mirror polishing, matte finish, sandblasting
Inlet & Outlet Connection: Tri-clamp, thread, flange
Working Pressure: ＜0.5 MPa
Working Temperature: 5 ~ 85°C
| Model Specification | Interface | Flow Rate (T/H) | Caliber | Fixing Method |
| DLJM-Φ159×250 (3 cores 10 inches) | Internal Thread | 1.0-2.0 | 3/4 inch | Clamp Type |
| DLJM-Φ159×250 (3 cores 10 inches) | Internal Thread | 2.0-2.0 | 3/4 inch | Clamp Type |
| DLJM-Φ159×250 (3 cores 10 inches) | Internal Thread | 4.0-2.0 | 1.2 inches | Clamp Type |
| DLJM-Φ159×1000 (3 cores 10 inches) | Internal Thread | 5.0-6.0 | 1.5 inches | Clamp Type |
| DLJM-Φ159×250 (3 cores 10 inches) | Internal Thread | 2.0-3.0 | 1 inch | Clamp Type |
| DLJM-Φ159×550 (3 cores 20 inches) | Internal Thread | 4.0-5.0 | 1.2 inches | Clamp Type |
| DLJM-Φ159×250 (3 cores 30 inches) | Internal Thread | 7.0-8.0 | 1.5 inches | Clamp Type |
| DLJM-Φ159×1000 (3 cores 10 inches) | Internal Thread | 9.0-11.0 | 1.5 inches | Clamp Type |
| DLJM-Φ159×250 (3 cores 10 inches) | Internal Thread | 3.0-4.0 | 1.2 inches | Clamp Type |
| DLJM-Φ230×550 (3 cores 10 inches) | Internal Thread | 6.0-8.0 | 1.5 inches | Clamp Type |
| DLJM-Φ159×250 (3 cores 10 inches) | Internal Thread | 10.0-11.0 | 2 inches | 3/4 inch |
| DLJM-Φ159×250 (3 cores 10 inches) | Internal Thread | 13.0-15.0 | 2 inches | Clamp Type |
| DLJM-Φ230×500 (5-7 cores) 20 inches | Internal Thread | 6.0-2.0 | 1.5 inches | Flange |
| DLJM-Φ230×750 (5-7 cores) 30 inches | Internal Thread | 10.0-11.0 | 2 inches | Plug Type |
| DLJM-Φ230×1000 (5-7 cores) 40 inches | Internal Thread | 13.0-15.0 | 2 inches | Flange |
| DLJM-Φ273×500 (7-9 cores) 20 inches | Internal Thread | 7.0-9.0 | 2 inches | Plug Type |
| DLJM-Φ273×750 (7-9 cores) 30 inches | Internal Thread | 10.5-13.5 | 2 inches | Flange |
| DLJM-Φ273×1000 (7-9 cores) 40 inches | Internal Thread | 14.0-18.0 | 2 inches | Clamp Type |
| DLJM-Φ300×500 (10 cores) 20 inches | Internal Thread | 9.0-10.0 | 2 inches | Flange |
| DLJM-Φ300×750 (10 cores) 30 inches | Internal Thread | 14.0-15.0 | 2 inches | Plug Type |
| DLJM-Φ300×1000 (10 cores) 40 inches | Internal Thread | 18.0-20.0 | 2 inches | Flange |
| DLJM-Φ559×560 (12-15 cores) inches | Internal Thread | 12.0-15.0 | 2 inches | Plug Type |
| DLJM-Φ325×750 (12-15 cores) 30 inches | Internal Thread | 18.0-22.0 | 2 inches | Flange |
| DLJM-Φ329×1000 (3 cores 10 inches) | Internal Thread | 24.0-30.0 | 2 inches | Flange |
| DLJM-Φ159×750 (15-16 cores) 30 inches | Internal Thread | 24.0-27.0 | 2 inches | Plug Type |
| DLJM-Φ350×1000 (3 cores 10 inches) | Internal Thread | 32.0-36.0 | 2.5 inches | Plug Type |
| DLJM-Φ400×750 (19-20 cores) 30 inches | Internal Thread | 27.5-30.0 | 2.5 inches | Plug Type |
| DLJM-Φ400×1000 (19-20 cores) 40 inches | Internal Thread | 38.0-40.0 | 2.5 inches | Plug Type |
| DLJM-Φ450×750 (21-25 cores) 30 inches | Internal Thread | 31.5-37.5 | 2.5 inches | Plug Type |
| DLJM-Φ450×1000 (21-25 cores) 40 inches | Internal Thread | 42.0-50.0 | 2.5 inches | Plug Type |
| DLJM-Φ500×750 (30-35 cores) 30 inches | Flange | 45.0-52.5 | DN65 | Clamp Type |
| DLJM-Φ500×1000 (30-35 cores) 40 inches | Flange | 60.0-70.0 | DN80 | Clamp Type |
| DLJM-Φ550×750 (36-40 cores) 30 inches | Flange | 54.0-50.0 | DN80 | Clamp Type |
| DLJM-Φ600×1000 (36-40 cores) 10 inches | Flange | 72.0-80.0 | DN80 | Clamp Type |
| DLJM-Φ700×750 (31-50 cores) 30 inches | Flange | 61.5-75.0 | DN80 | Clamp Type |
| DLJM-Φ700×1000 (36-40 cores) 10 inches | Flange | 82.0-100.0 | DN80 | Clamp Type |
| DLJM-Φ800×750 (55 cores) 30 inches | Internal Thread | 82.5-99.0 | DN100 | Clamp Type |
