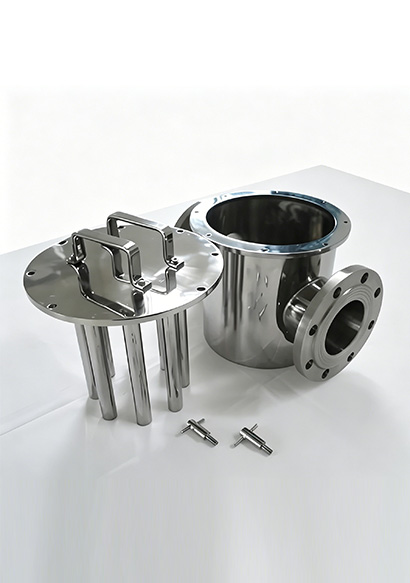

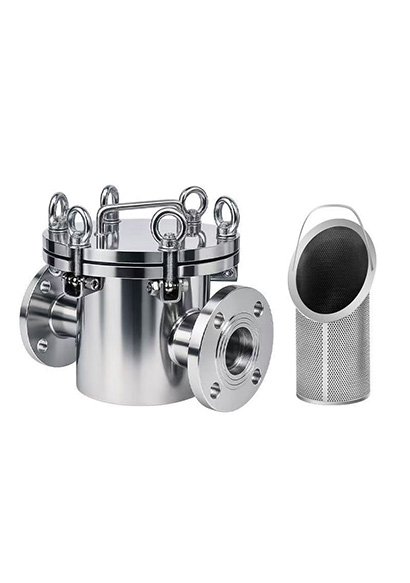

Made of SUS304/SUS316 stainless steel body and high intensity NdFeB magnetic rods (8000~12000GS), this magnetic filter is installed on pipeline to capture iron particles, rust, metal scraps from liquid flow.
Email:
xxhuaqing@126.comPhone:
+86 15936525232High magnetic strength to remove micro iron impurities, protect pumps, filters and downstream equipment.
Mirror polished stainless steel, food grade, acid & alkali resistant.

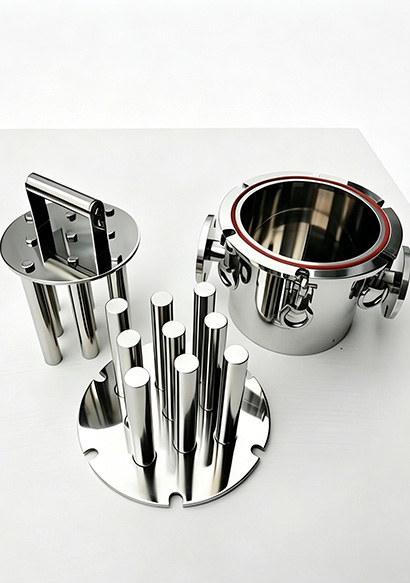

Quick-open lid design, easy to pull out magnetic rods for cleaning without cutting pipeline.
Large flow capacity, low flow resistance, working pressure up to 1.6MPa.

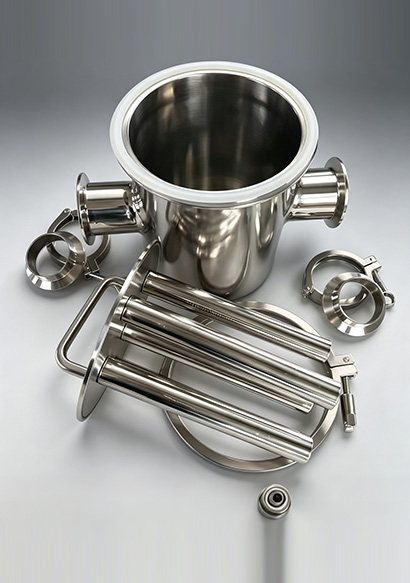

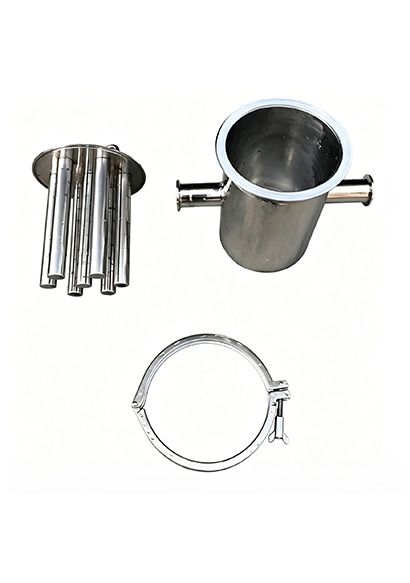

Custom size: flange/clamp connection, different rod quantity & inlet-outlet size available.
Food & beverage, paint, chemical, wastewater, plastic, oil industry.
| Model | Diameter (mm) | Pipe Diameter (mm) | Height (mm) | Number of Magnetic Rods | Installation Distance (mm) |
| NH-KE-133 | 133 | 25/32 (Chuck 50.5) | 150 | 3 | 250 |
| 133 | 38 (Collet 50.5) | 150 | 3 | 250 | |
| NH-KE-159 | 159 | 45/51 (Chuck 64) | 180 | 5 | 300 |
| 159 | 57/63 (Chuck 77.5) | 180 | 5 | 300 | |
| NH-KE-219 | 219 | 76 (Collet 91) | 210 | 7 | 350 |
| 219 | 80 (Collet 91) | 210 | 7 | 350 | |
| 219 | 89 (Collet 106) | 210 | 7 | 350 | |
| NH-K-273 | 273 | 108 (Collet 109) | 250 | 9 | 400 |
| 273 | 133 (Collet 145) | 250 | 9 | 400 | |
| 273 | 152 (Collet 167) | 250 | 9 | 400 | |
| NH-KE-325 | 325 | 159 (Collet 183) | 280 | 11 | 450 |
| 325 | 204 (Collet 217) | 280 | 11 | 450 | |
| 325 | 219 (Collet 233) | 280 | 11 | 450 | |
| NH-KE-377 | 377 | 273 (Collet 305) | 350 | 15 | 550 |
| NH-K-426 | 426 | 325 (Chuck 350) | 400 | 19 | 650 |
